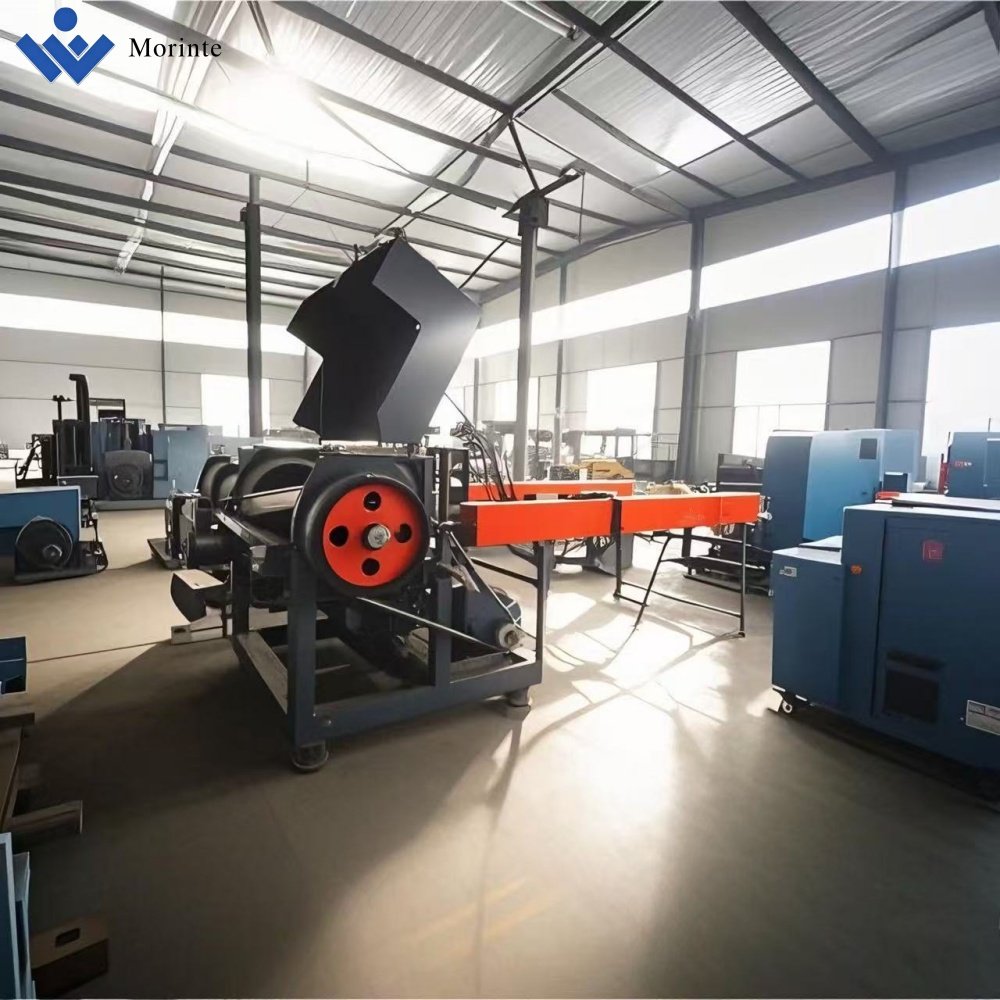

Textile Cutting Machine is a versatile size-reduction solution for waste rags, yarn, clothing, fabric, textiles, chemical fibers, plastics, paper, and fishing nets. It employs a rotating blade roller and fixed blade shearing action, producing adjustable output lengths from 5 to 20 cm with variable speed control. The machine delivers high output, low operating costs, robust construction, user-friendly operation, and enhanced safety.
This cutting machine is specifically designed for the efficient recycling and resource-oriented processing of textile waste and fiber-based materials. It is widely used in industries such as textiles, chemical fibers, composite material manufacturing, and renewable resource recovery.
The equipment features a shearing structure combining a rotary blade roller and a fixed counter-blade. Through the precise shearing action generated by the high-speed rotating blades against the stationary blade, it uniformly cuts the materials into controlled, evenly sized pieces in a single pass.
Applicable materials cover a wide range of soft and lightweight items, including waste garments, fabric trimmings, yarns, chemical fibers, plastic films, paper, and waste fishing nets.
The machine operates with stable performance, low energy consumption, and easy maintenance, making it a reliable solution for volume reduction and resource utilization of textile waste.
With over a decade of dedicated market presence, this cutting machine has been exported to more than 50 countries and regions across Europe, the Americas, Southeast Asia, the Middle East, and Africa, serving over 300 textile and recycling enterprises. We have established authorized agents and after-sales service centers in Pakistan, Bangladesh, India, and Vietnam, building a comprehensive sales and service network that covers key global markets.
Quality stands the test of time. Many of our customers have been using this equipment continuously for more than 5 years, with a stable daily processing capacity of 5 to 10 tons, and key components boasting a service life of over 8,000 hours. We have conducted over 10,000 hours of continuous full‑load testing on the machine to ensure that every unit delivers optimal stability before leaving the factory. The balanced combination of high output, low energy consumption, and low failure rate makes it a highly cost‑effective choice in the market.
Safety is embedded in every detail. The machine features multiple overload protection devices and an emergency braking system, fully compliant with CE and ISO 12100 international safety standards. The user‑friendly interface and modular design simplify routine maintenance and operation, allowing a single operator to manage the entire production line with ease.
Choosing us means choosing a proven and reliable commitment backed by years of real‑world performance.
| Model number | MT800 | MT1200 | MT1600 | MT2400 | MT3200 |
| Main motor | 8P7.5kw | 8P15kw | 8P18.5kw | 8P15kw(Two sets) | 8P30kw(Two sets) |
| Conveyer motor | 4p1.5kw | 4p2.2kw(Variable frequency motor) | 4p3.0kw(Variable frequency motor) | 4p4.0kw(Variable frequency motor) | 4p5.5kw(Variable frequency motor) |
| Belt wheel | Φ100 | Φ140 | Φ120 | Φ140 | Φ350 |
| Moving blade base | Φ300 | Φ400*600 | Φ500*800 | Φ600*1200 | Φ1000*1500 |
| Feeding conveyor | 1400*330mm | 3000*520mm | 3000*720mm | 3000*1100mm | 3000*1400mm |
| Output conveyor | 1400*330mm | 3000*520mm | 3000*720mm | 3000*1100mm | 3000*1400mm |
| Machine size | 2100*1000*1100 | 1400*1450*1500 | 1550*1700*1550 | 2100*1900*1550 | 3000*3300*3000 |
| Cutting size | 2.5.8CM | tunable | tunable | tunable | tunable |
| Capacity | 500-800kg/h | 800-1200kg/h | 1500-1200kg/h | 3000-4000kg/h | 6000-8000kg/h |
Blades Engineered for Performance
What makes a cutting machine truly productive? The blades. Ours are forged from high-grade wear‑resistant alloy steel (Cr12MoV / SKD‑11), hardened to HRC 58–62 for the perfect balance of toughness and edge retention. In real‑world operation, they deliver 500–800 hours of continuous service – and our core blade assembly easily surpasses 8,000 hours before major overhaul.
Precision is where we excel. The clearance between rotary and fixed blades is adjustable down to 0.05 mm, ensuring every cut is clean, burr‑free, and dimensionally accurate within ±1% . That means no ragged edges, no rework – just consistent, high‑quality output that your downstream process will love.
And when maintenance time comes, we've made it painless. Our modular blade design lets you swap out a set in under 2 hours – minimal downtime, maximum uptime.
Safety That Gives You Peace of Mind
We know safety is non‑negotiable. That's why every machine is built with:
Full‑enclosure guards with interlocked doors – open the door, power cuts instantly.
Anti‑kickback baffles at the feed inlet to protect operators from flying debris.
Multiple overload protections and premium electrical components from global leaders like Schneider and Siemens.
Two large emergency stop buttons (front and rear) that bring the machine to a standstill in ≤ 0.5 seconds – because every fraction of a second counts.
All backed by CE certification and full compliance with ISO 12100 – so you can deploy this machine anywhere in the world with confidence.
Noise? Kept to a comfortable 75–80 dB(A) – well below industry limits, creating a better workplace for your team. Operation? Simplified with a PLC touchscreen that puts full control at one operator's fingertips – no complex training, no extra manpower.
Our Promise to You
We don't just sell machines – we build partnerships. Send us your toughest materials, and we'll run free trial cuts for you to judge the results firsthand. Can't visit us? We'll share live operation videos or arrange a remote demo, so you can see the safety features in action before you commit.
Choose our cutter – and choose proven performance, uncompromising safety, and a team that stands behind every delivery.
