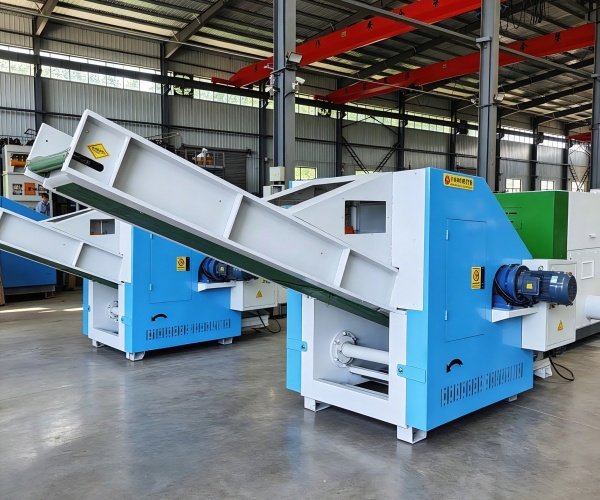

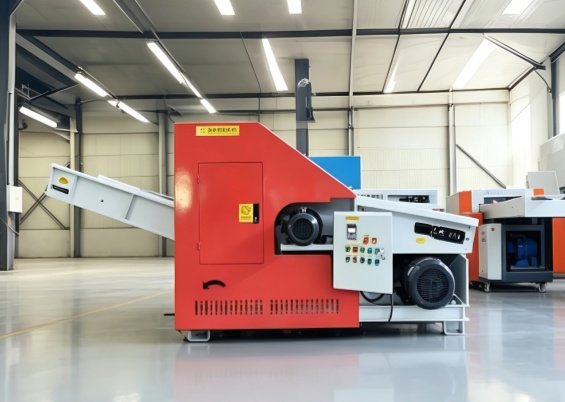

Rag Cutting Machine，Powered by inverter-controlled blade for precise, uniform, and adjustable cut lengths. Features low-speed, high-torque drive with cycloidal reducer and frequency control for stable reciprocating action. Robust construction ensures durability, reliability, and safe operation. Easy to maintain and designed for significant production efficiency gains.
This guillotine-type cutter employs an inverter-controlled blade for precision shearing action, delivering uniform, adjustable cutting lengths. The reciprocating mechanism is driven by a low-speed, high-torque motor paired with a cycloidal gear reducer and variable frequency drive, ensuring smooth and stable operation. Built with heavy-duty construction, the machine offers exceptional durability, operational reliability, and safety compliance. User-friendly design facilitates quick maintenance, while the overall system is engineered to maximize production throughput.
Type | MT1800 |
Capacity | 500-1500kg/h |
Cutting times | 120/min |
Blade | 1+1 pcs |
Cutting thickness | 20-200mm |
Power | 15+1.5kw |
Size | 2300x1500x1600mm |
Rag Cutting Machine is designed to process a wide range of materials, primarily various types of soft fibers and textile waste. The applicable materials are summarized below:
Textile Waste
Used Garments & Fabric Scraps: Old clothes, denim, knitted fabrics, garment factory offcuts, rag pieces, cotton wadding
Yarn Waste: Cotton waste yarn, drawframe waste, tangled yarn, yarn balls, knitting remnants
Nonwovens: Nonwoven fabric, geotextile, spunbond fabric, felt, mattress fabric
Natural Fibers
Cotton, flax, jute, sisal, coir fiber, palm fiber
Synthetic Fibers
Polyester, polypropylene, acrylic, polyamide, nylon waste filament, fiberglass, carbon fiber
Other Soft Materials
Leather, plastic film, woven bags, paper, tags, carpet, sponge, fishing nets
Rag Cutting Machine is widely applied in the following industries:
Textile Recycling Industry: Shredded fabric offcuts are processed through openers to extract regenerated fibers for recycled cotton and other reprocessed textile products.
Nonwoven and Felt Manufacturing: Provides precisely cut fiber lengths as feedstock for carpet backing, blankets, needle-punched felt, and construction-grade polypropylene fiber reinforcement.
Filling Material Production: Supplies high-quality cut fibers for stuffed toys, mattress padding, automotive interior cushioning, and furniture upholstery.
Industrial Additive Applications: Delivers cut fibers as reinforcing additives in rubber compounding, specialty papermaking, and premium coating formulations.
Garment Recycling Facilities: Enables large-scale processing of post-consumer textile waste, converting discarded clothing into reusable raw materials.
Material Recovery Facilities (MRFs): Serves as a pretreatment solution for heterogeneous textile waste streams, homogenizing feed material for downstream separation and recovery processes.
Safety is our top priority in design. This machine is equipped with multiple safety features:
Mechanical Guards: Transparent safety covers at the feed inlet prevent hand contact with the cutting zone while allowing visual monitoring.
Emergency System: Emergency stop buttons are positioned at both ends of the machine. The cutter immediately stops if the safety guard is opened during operation.
Overload Protection: The motor has built-in thermal overload protection. An optional metal detector can be installed to automatically stop/reverse the feed when hard objects (e.g., metal, stones) are detected, protecting the blades from shattering.
Stable Structure: The heavy-duty welded frame ensures low vibration during high-torque shearing, keeping operators safe from mechanical fatigue or loosening.
Can the color be customized?
Yes, the machine is available in White, Blue, Orange or can be customized as requested.
What is the cutting capacity?
The capacity ranges from 500 to 1500kg/h with 120 cutting times per minute.
How long is the delivery time?
Standard delivery is 7 days. Peak season lead time is one month, off-season is within 15 workdays.
What certifications does the machine have?
The machine is CE certified and is in new condition.
